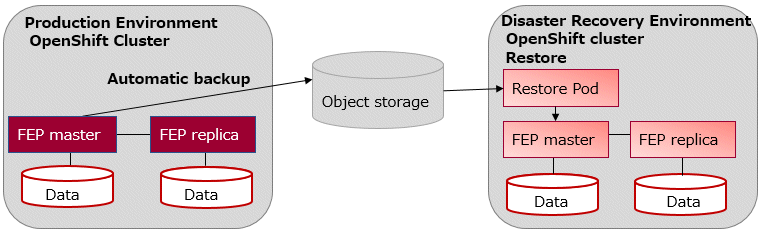

The configuration diagram of the Pod arrangement and backup repository, which are prerequisites for the backup function to perform disaster recovery using the backup/restore method, is shown below.

In FEPCluster to get a backup, specify the object storage as the backup data storage destination with spec.fepChildCrVal.backup.pgbackrestParams.

Specify object storage that is in an area that is considered safe for the scope of the expected disaster.

The definition of the FEPCluster custom resource is not inherited when performing disaster recovery.

We recommend that you save your production environment FEPCluster custom resource definitions in case of a disaster.

Describes the procedure for restoring to an OCP environment different from the restore source using the backup data stored in the object storage.

If you want to use a non-default root certificate for object storage connections, register it in ConfigMap.

$ oc create configmap storage-cacert --from-file=ca.crt=storage-ca.pem -n my-namespace

When using the parameter (repo-gcs-key) of pgBackRest, register the GCS repository key in Secret.

$ oc create secret generic storage-key-secret --from-file=key.json=storage-key.json -n my-namespace

In addition to the FEPCluster settings, specify the Restore settings below.

FEPCluster Custom Resource Example

apiVersion: fep.fujitsu.io/v1
kind: FEPCluster
metadata:
  …
spec:
  fepChildCrVal:
    restore:
      pgbackrestParams: |
        repo1-type=s3
        repo1-path=/backup/cluster1
        repo1-s3-bucket=sample-bucket
        repo1-s3-endpoint=s3.ap-northeast-1.amazonaws.com
        repo1-s3-region=ap-northeast-1
        repo1-storage-ca-file=/pgbackrest/storage-certs/ca.crt
      pgbackrestKeyParams: |
        repo1-s3-key=SAMPLEKEY
        repo1-s3-key-secret=SAMPLESECRET
      caName:
       - storage-cacert

…

When using object storage GCS as a backup repository, specify as follows.

For repoKeySecretName, specify the Secret created in "Storing GCS Repository Key". Also, specify service for gcs-key-type.

apiVersion: fep.fujitsu.io/v1
kind: FEPCluster
metadata:
  …
spec:
  fepChildeCrVal:
    backup:
      pgbackrestParams: |
        repo1-type=gcs
        repo1-path=/backup-ct/test2
        repo1-gcs-bucket=dbaas-gcs
        repo1-gcs-endpoint=localhost
        repo1-storage-ca-file=/pgbackrest/storage-certs/ca.crt
        repo1-gcs-key=/pgbackrest/storage-key/key.json
        repo1-gcs-key-type=service
      caName:
       - storage-cacert
      repoKeySecretName:
       - storage-key-secret
…

Setting value
